Product Details
Place of Origin: CHINA
Brand Name: YANING
Certification: CE ISO SGS
Model Number: YN-CB-005
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Reconsideration US$1,500.00-2,000.00 Set
Packaging Details: The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
Delivery Time: 7 work days
Payment Terms: Western Union, T/T, L/C,
Supply Ability: 100 units/Week
Material:: |
Powder Coated Steel / SUS304/Galvanized Sheet |
Dimension(W*D*H): |
2030*790*2010mm(80*31*79") |
Internal Work Zone(W*D*H): |
1830*695*700mm(72*27*28") |
Warranty: |
1 Year |
Air Flow: |
3000 (m3/h) |
Air Filter: |
H14 HEPA FILTER 99.995%@0.3um |
Air Velocity: |
0.3~0.6m/s |
LED Lamp Power: |
30W*1 |
Material:: |
Powder Coated Steel / SUS304/Galvanized Sheet |
Dimension(W*D*H): |
2030*790*2010mm(80*31*79") |
Internal Work Zone(W*D*H): |
1830*695*700mm(72*27*28") |
Warranty: |
1 Year |
Air Flow: |
3000 (m3/h) |
Air Filter: |
H14 HEPA FILTER 99.995%@0.3um |
Air Velocity: |
0.3~0.6m/s |
LED Lamp Power: |
30W*1 |
Product Informatlon:

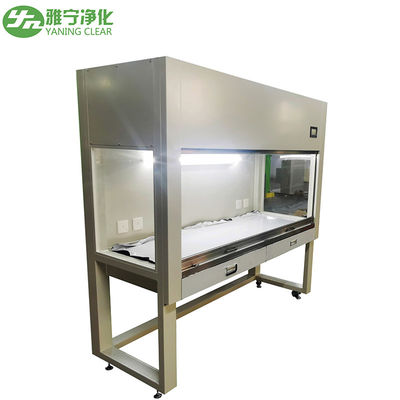

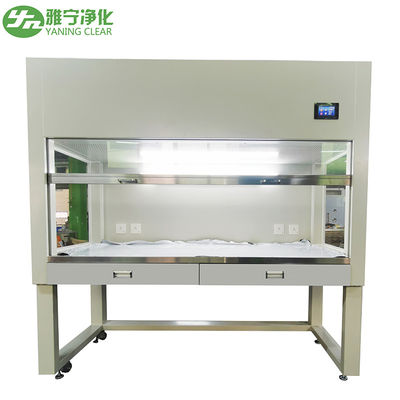

Vertical laminar flow cabinet adopts vertical one-way positive pressure air flow from top to bottom to achieve purificationeffect low noise centrifugal fan, static pressure box, high eficiency filter combined with a single unit structure. t is a kindof air conditioning equipment that provides local high clean environment with strong versatility, and its use has a goodeffect on improving process conditions,improving product quality and increasing yield. The equipment is widely used inbiological laboratory, pharmaceutical factory, hospital, food processing, electronics factory, painting and other airpurification places.
Product Description:
①A Laminar flow hood/cabinet is an enclosed workstation that is used to create a contamination-free work environment through filters to capture all the particles entering the cabinet.
②These cabinets are designed to protect the work from the environment and are most useful for the aseptic distribution of specific media and plate pouring.Compared with the construction of clean rooms, it’s much economic in investment and can save operating costs.
Detail Image:
Product Feature:
① Provide an operating environment with a cleanliness level of 100.
②Horizontal laminar flow or vertical laminar flowmodels available.
③Ultra-thin high-efficiency HEPA air filter, which takes up little space.
④ Stainless steel table top, with plexiglass cover, can be equipped with UV remote control.
Product Parameter
| Item | Vertical Laminar Flow Clean Bench | ||
| Model | YN-CZT-01 | YN-CZT-02 | YN-CZT-03 |
| External size W×D×H(mm) | 1000×700×1850 | 1200×700×1850 | 1500×700×1850 |
| Internal Size W×D×H(mm) | 900×650×600 | 1100×650×600 | 1400×650×600 |
| HEPA Filter(mm) | 800×500×69×1 Pcs | 1000×500×69×1 Pcs | 1300×500×69×1 Pcs |
| HEPA Filter Efficiency | 99.95%@0.3μm | 99.95%@0.3μm | 99.95%@0.3μm |
| G4 Pre Filter(mm) | 495x495x21x1 Pcs | 495x495x21x1 Pcs | 495×495×21×1 Pcs |
| Noise | 52～62dB(A) | 52～62dB(A) | 52～62dB(A) |
| Fan Pressure | 260pa | 260pa | 260pa |
| Fan Power (W) | 200W×1 Pcs | 200W×1 Pcs | 200W×1 Pcs |
| LED Lamp Power(W) | 12W×1 Pcs | 18W×1 Pcs | 30W×1 Pcs |
| Air Velocity(m/s) | 0.45m/s±20% | ||
| Clean Level | ISO 5 | ||
| Supply Power | AC 1N 220V/50Hz | ||
| Control System | 4.3"touch screen,3 stage regulation,light,sterilization | ||
Optional Accessories
UV Germicidal Lamp
The germicidal UV lamp is installed within FFU hood to inhibit microbial growth on the work surface
Replacement Filters
Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers
Work Station Drawers
Available in ABS plastic or stainless steel
Explosion-Proof Fan Filter Unit for Hood
Explosion Proof FFU provides HEPA filtration where solvent vapors, dust and other flammable hazards are present
