Product Details
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-F7
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: reconsideration
Packaging Details: some pcs in a pp bag,then in a carton.final made wooden tray.
Delivery Time: 7-25 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000pcs/month

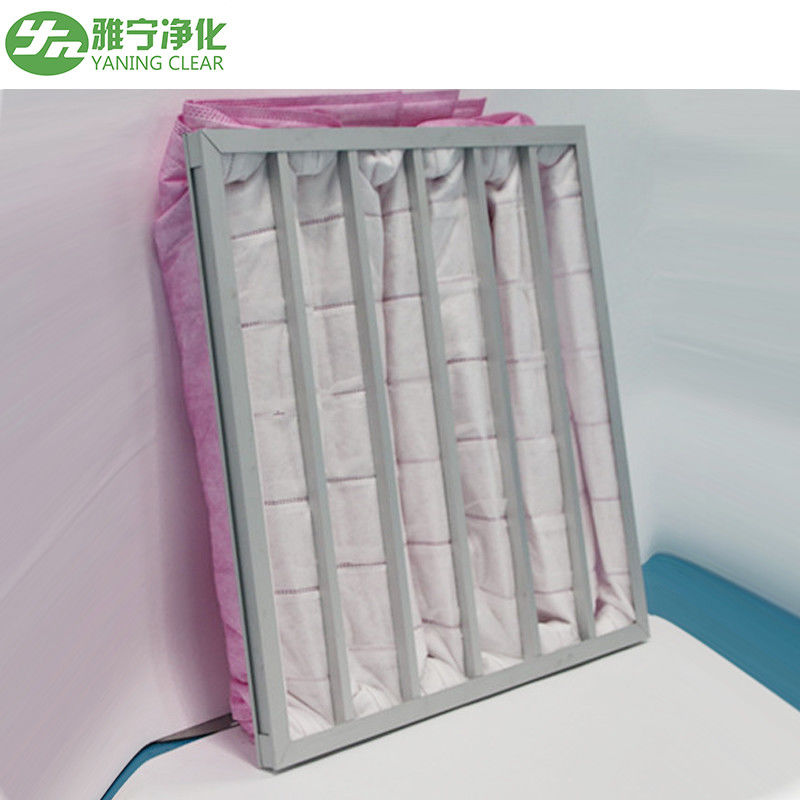

Product Name: |
F7 Air Filter For Ahu |
Bag Material: |
F7 / F8 Non Woven |
Frame Material: |
Aluminum Or Galvanized Or Plastic |
Size: |
592*592*500mm Or Custom |
Bag Number: |
6pcs Or Custom |
Air Volume: |
3500m³/h |
Type:: |
Middle Efficiency Air Filter |
Application:: |
AHU/HVAC/The Ventilation System |
Product Name: |
F7 Air Filter For Ahu |
Bag Material: |
F7 / F8 Non Woven |
Frame Material: |
Aluminum Or Galvanized Or Plastic |
Size: |
592*592*500mm Or Custom |
Bag Number: |
6pcs Or Custom |
Air Volume: |
3500m³/h |
Type:: |
Middle Efficiency Air Filter |
Application:: |
AHU/HVAC/The Ventilation System |
Our company's F7/F8 bag air filter, the frame is a high quality galvanized frame or aluminum alloy frame. F7/F8 bag filter air filter filter material for glass fiber, non-woven fabrics, using ultrasonic sewing technology, internal drawing technology. Our F7/F8 bag air filters are manufactured using materials that meet international standards.
Suitable for intermediate filtration in pharmaceutical, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automotive and other industries
Bag-type medium efficiency filters are widely used in industrial air purification systems, pharmaceuticals, hospitals, electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
1).Welded edge to avoid leakage
2).Self-supported
3).Fire retardant
4).Fixed airflow tunnle insdie each pocket.
5).High volume and capapcity
Medium-effect bag filter with sturdy metal frame structure, optional aluminum frame, galvanized iron; high dust holding capacity, low resistance; fluffy multi-layer synthetic fiber filter paper; ultrasonic seamless bag structure; efficiency: 40~45% (F5), 60 ~65% (F6), 80~85% (F7), 90~95% (F8), ≤95% (F9). Medium-effect bag filter is a medium-efficiency filter. It is mainly used in air-conditioning systems. It is mainly made of high-quality non-woven materials. It has a large dust holding capacity and is used to filter particles of 1-5μm dust with low resistance. The advantage of large air volume.
Technical Specifications:
| Model | Dimension(MM) | Rated air volume | Effectiveness | Colour | Initial resistance |
| YN-011 | 592*592*381-6P | 3600m³/h | F5(45%) | white | ≤85Pa |
| YN-012 | 290*592*381-3P | 1500m³/h | F6(65%) | green | |
| YN-013 | 490*592*381-5P | 3200m³/h | F7(85%) | pink | |
| YN-014 | 490*490*381-5P | 2800m³/h | F8(95%) | yellow | |
| YN-011-01 | 592*592*600-6P | 3600m³/h | G4(35%) | jacinth | |
| YN-011-02 | 592*592*600-6P | 1500m³/h | F5(45%) | earthy yellow | |
| YN-011-03 | 592*592*600-6P | 3200m³/h | F6(65%) | green | |
| YN-011-04 | 592*592*600-6P | 2800m³/h | F7(85%) | pink | |
| YN-011-05 | 592*592*600-6P | 2800m³/h | F8(95%) | yellow | |
| YN-011-06 | 592*592*600-6P | 2800m³/h | F9(99%) | white | |
| Special size and specifications can be made according to customer requirements | |||||
